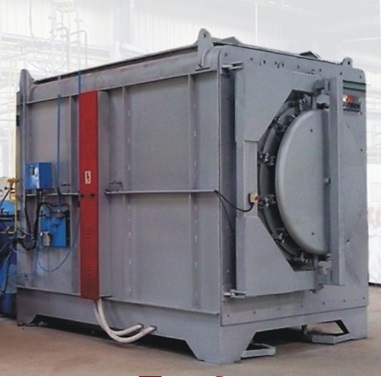

Front Loading Furnace with Vacuum Prepurge

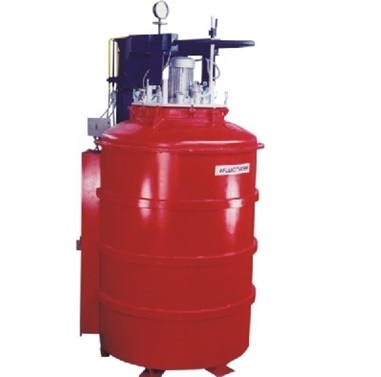

Top Loading Furnace

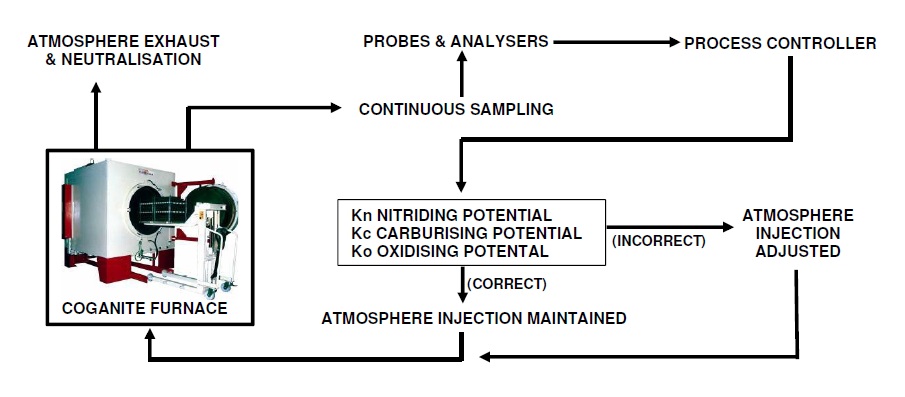

COGANITE Nitriding furnaces are constructed with systems that control the injection of gases based on continuous analysis of the furnace atmosphere and pressure. This is done to maintain preset Nitriding Potentials (Kn) to achieve repeatable results in terms of case depth & case characteristics such as white layer control and hardness profile.
A Sophisticated facility has been installed at the Fluidtherm Chennai works consisting of three nitriding furnaces, metallurgical lab & infrastructure.
Process metallurgists work full time On:
Process Development
Customer Trials
Jobbing& Technology Demonstration
Ring Gear (AISI 4140)
H 13 Aluminium Extrusion Dies
Drive Shaft (SUS 420)
Exhaust Engine Valve (21-4N)
Surface Hardness : 620HV
White Layer : 8 µm
Diffusion Layer : 320 µm
Mag : 200X
Surface Hardness : 1160HV
White Layer : 6 µm
Diffusion Layer : 220 µm
Mag : 200X
Surface Hardness : 1260HV
White Layer : 10 µm
Diffusion Layer : 60 µm
Mag : 100X
Surface Hardness : 1480HV
White Layer : Nil
Diffusion Layer : 55 µm
Mag : 100X
Cam ring- HSS (M 12)
Bush (CK 45)
Stainless Rotor (AISI 316)
Intake Engine valve (EN 52)
Surface Hardness : 1100HV
White Layer : Nil
Diffusion Layer : 90 µm
Mag : 100X
Surface Hardness : 580HV
Oxide Layer : 2 µm
White Layer : Nil
Diffusion Layer : 90 µm
Mag : 100X
Surface Hardness : 1210HV
White Layer : Nil
Diffusion Layer : 90 µm
Mag : 200X
Surface Hardness : 1140HV
White Layer : 5 µm
Diffusion Layer : 100 µm
Mag : 100X
